Thursday, August 30, 2012

POS Hardware Support for OpenERP POS 6.1

Pragmatic is very pleased to annouce availability of POS hardware which works with OPenERP POS 6.1 We have developed hardware integration with POS PC, Customer Display, Bar code scanner, Cash Drawer and Thermal printer. Also we have support for Magentic card reader but support needs to be built for vaious payment gatweays in differnt counties. You can see list of hardware below. This soluton is ideal for a Retail or Restaurant usage. For more details contact us sales@pragtech.co.in

P/N
Description
Features
Economy 15'' All-in-One Touch POS PC
  1. 4-wire resistive touch, cost saving desgin;
  2. Mainframe is seperated from the monitor, which is good for cooling and repair.
  3. Various ports and low power consumption
  4. Wide range power supply with external power adaptor, which can meet different request in different countries.
  5. Intel ATOM D425 1.8G CPU; DDR3 2G Memory; 160G HDD.
Premium 15'' All-in-One Touch POS PC
  1. 5-wire Restiveness Touch
  2. Elegant looking
  3. Various ports and low power consumption
  4. Wide range power supply with external power adapter, which can meet different request in different countries.
  5. Intel ATOM D425 1.8G CPU; DDR3 2G Memory; 160G HDD.
Scanner 1 Laser Barcode Scanner with Auto-Induction Function
  1. Auto-Induction built in, green design;
  2. High scan rate (100 scans/sec),minimum resolution and maximum reading distance;
  3. Excellent decode capability;
  4. KBW, RS232 and USB supported;
  5. Durable construction combined with future-proofing.
  6. Grey and Black Color available
Scanner 2 Laser Barcode Scanner with Auto-Induction Function
  1. auto induction laser barcode scanner with stand
  2. 100 scans/sec high scan rate
  3. KBW, RS232 and USB interface for option
  4. Gry and balck color available
Printer 1 80mm Thermal Printer with Automatic Cutter
  1. 260mm/sec high speed printing
  2. Print head life is 100km
  3. Compatible with ESC/POS command
  4. Support logo printing
  5. Support barcode printing
  6. Support cash drawer driving
  7. Multiple ports for option
  8. Auto cutter imported from Japan
Printer 2 80mm Thermal Printer
  1. 230mm/sec high speed printing
  2. Print head life is 100km
  3. Compatible with ESC/POS command
  4. Support logo printing
  5. Support bar code printing
  6. Support cash drawer driving
Printer 3 80mm Thermal Printer with Automatic Cutter
  1. 230mm/sec high speed printing
  2. Print head life is 100km
  3. Compatible with ESC/POS command
  4. Support logo printing
  5. Support barcode printing
  6. Support cash drawer driving
  7. Multiple ports for option
  8. Auto cutter
Printer 4 80mm Thermal Printer with Automatic Cutter
  1. High Printing Speed (Max 250mm/second);
  2. Auto Cutter Optional;
  3. 3 interfaces together (USB+Serial+Ethernet);
  4. Vertical hanging supported. Water-proof and grease-proof;
  5. Audible and visual alarm supported, best application for kitchen menu printing;
Printer 5 80mm Thermal Printer with Automatic Cutter
  1. 250mm/sec high Printing Speed;
  2. Vertical hanging for option
  3. Support cash drawer driving
  4. Serial+USB+LAN port available on one printer
Cash Drawer Cash    Drawer
  1. 3 position lock
  2. Auto/manual opening way
  3. 4 or 5 bill trays, adjustable
  4. 8 coins trays, removable
  5. Dimension: 420*410*100 mm
Magnetic Card Reader Mini USB Magnetic Stripe Card Reader
  1. 3 tracks Magnetic Stripe Card Reader
  2. Bi-directional swipe reading
  3. Reliable for 1,000,000 card swipes
  4. USB port
Customer Display Economy LED Customer Display
  1. 8 characters LED display
  2. Pole height is adjustable
  3. 360 degree rotation angel
  4. Compatible with "ESC / POS" standard common instruction set, no need driver, plug and use
  5. RS232 port or USB port for option
  6. Black or White for option
Customer Display Premium Double Line VFD Customer Display Support double lines display (20*2)
The interface specification are based on EIA RS232C baud rate 9600 bps, 8 data bits, no parity, 1 stop bits.
RS232C or USB port for option
ATX POWER 4P(12V) Power connector from host or external DC power supply
Black or White for option

Thursday, August 23, 2012

Odoo OpenERP POS 6.1 Point of Sale Bar code Reader Support - Searching Products by reference and EAN13 ( BAR Code) :


Now a days most of the shopping centers and malls are making use of automated systems and touch-screen POS at the cashier point to eliminate the human error while billing and making the paymant. OpenERP POS is goof but it lacks searching the product by Bar code. It can search product by name and is the only option besides selecting the product by clicking mouse or with touch-screen. With thousands of products in view a cashier might take a long time to enter the product in POS. So to add product to order line searching products by Reference and EAN13 (Bar Code reader) in the touch-screen POS is essential for the POS to be usable.

We have modified the OpenERp POS to support Barcode and by reference
See the following image gallery demonstrating search of product  in POS via reference and EAN13 :

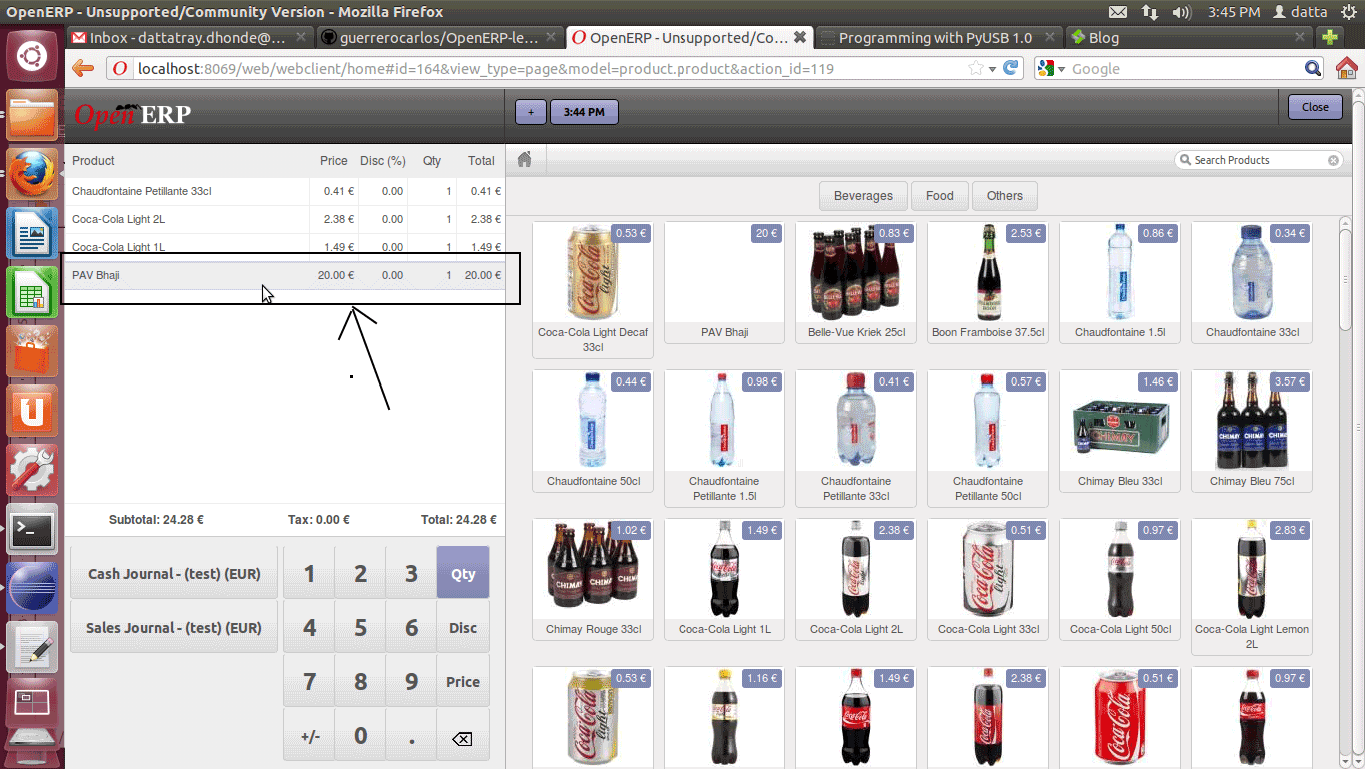

1.  Search the product by Reference, e.g. food item Pav Bhaji has reference as PB.  The image shows the product being highlighted on entering into the search field.


2. On hitting enter the product gets added to order line as shown in the image below.

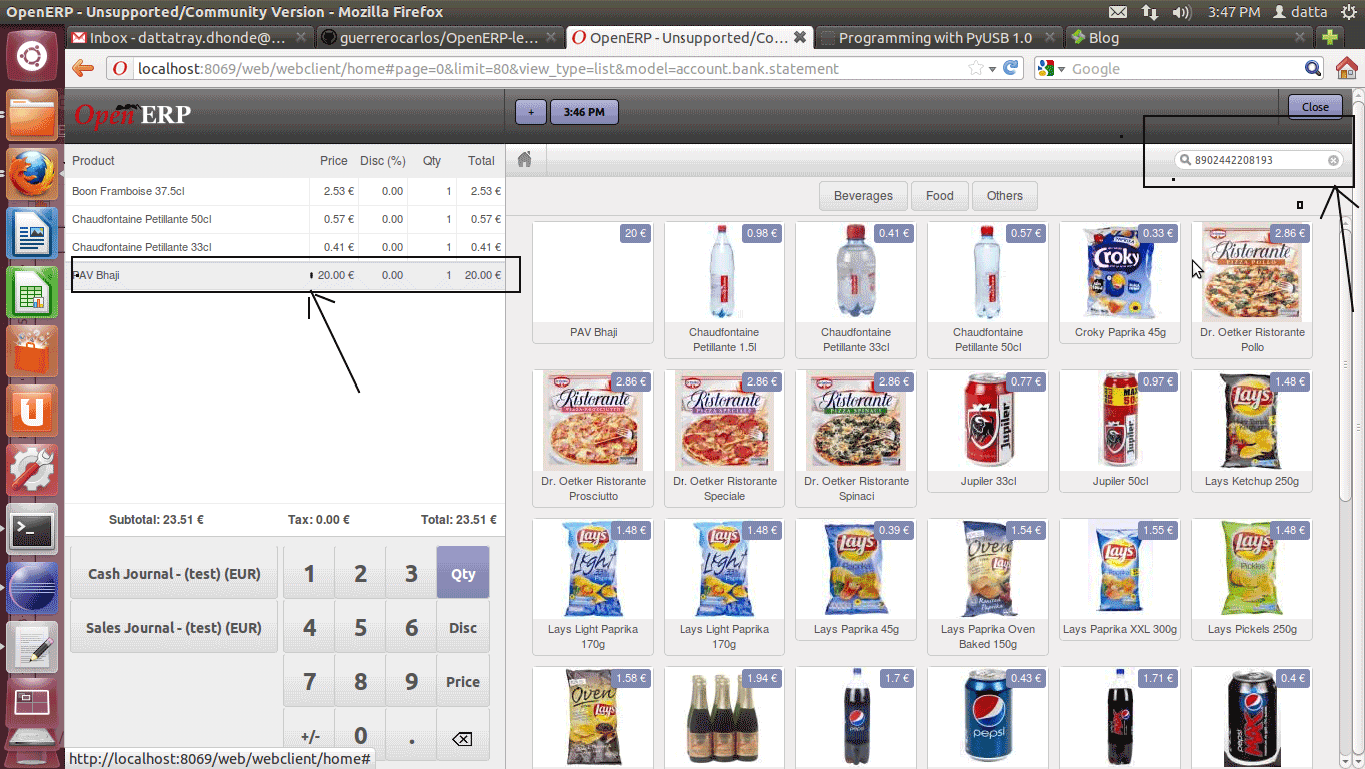

3. The following two images show searching of  product by EAN13  Bar code and an update in product summary details.


Updation in order line :


OpenERP SaaS kit

OpenERP SaaS kit

OpenERP is a very useful set of business applications being used by companies big and small across the globe. It has a very good multi-tenancy support and can be easily offered on a Saas model. Software as a Service model has gained immense popularity in today’s time and is complemented very well with cloud platforms. This model provides the end customers to get hassle free OpenERP implementation without worrying about software installation and hardware. They can also scale the system depending on increase in number of users.

Pragmatic has developed a very useful set of tools for people offering OpenERP Services to clients interested in a SaaS based offering. We have a collection of tools using which one can start offering OpenERP to current and future clients. Also we have created a self service interface using which customers can sign up for subscription on their own. They can also make payments using a number of Payment gateways thus eliminating any manual intervention. They can also evaluate the OpenERP software on a 30 days trial. The SaaS kit provides a easy demo site for customers to explore OpenERP further.

SaaS kit has a way to collect important user information such as their email address which can then be stored in the OpenERP CRM. This information can then be used to run marketing campaigns.

Key Features
  • Works with OpenERP 6.1
  • Sub-domain support with individual customers getting their own sub-domains or domains
  • Sub-domains URLS with only 1 Database listing thus isolating users from seeing other databases
  • Removal of Database creation URL so that no one can create a new database. A separate URL is provided for the administrator to create databases.
  • Supported gateways: PayPal
  • Support for a Demo site with a direct lead creation in OpenERP CRM
  • Automated trial versions which expire in 30 days.
  • Self-serve account creation.
  • Ability for users to reset their own passwords (Forgot your password?
  • Support for SSL with a digital certificate.
